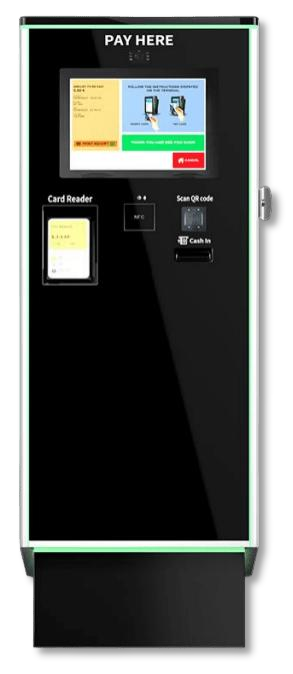

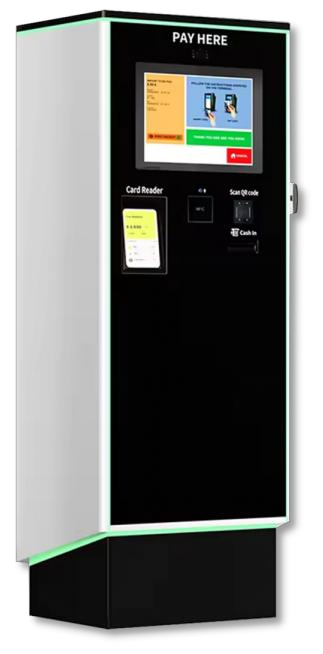

Tengda TD-GPA-PJ101 Parking Pay Station (cash + card)
Self-service pay station with 19" touchscreen, banknote acceptance and change, bank card POS, NFC and QR.
Description
A self-service parking payment station (central or exit payment). It has a 19-inch capacitive touchscreen, NFC card reader, QR code scanner, ticket printer, POS for bank and credit cards, and banknote acceptance with change. Built on an Intel i5 4th Gen PC with a 2 mm epoxy powder-coated steel housing (IP54), 1000VA UPS, intercom and integrated camera. Logo, colour, appearance and software can be customised (minimum 5 sets for logo, packaging or graphics).
Key facts
- Brand
- Tengda
- Model
- TD-GPA-PJ101
- Condition
- New
- Lead time
- 15-30 working days after payment
- Warranty
- 2-year free warranty on all hardware (per Tengda catalogue p.2; not restated in the proforma - confirm in contract)
- Price basis
- EXW Shenzhen, China
Technical specifications
- Main unit
- Intel i5 4th Gen, 4GB RAM, 120GB SSD
- Power supply
- 110/220V 50/60Hz, 500VA
- Display
- 19-inch capacitive touchscreen
- Communication
- TCP/IP
- Connectivity
- 2x 1000M LAN, 10x RS-232, 8x USB, VGA + HDMI
- Housing
- 2 mm anti-corrosion steel, epoxy powder coat
- Weight
- 120 kg (quote) / 160 kg (catalogue)
- Dimensions
- 1810 x 700 x 550 mm (quote) / 1810 x 604 x 300 mm (catalogue)
- Waterproof grade
- IP54
- Operating temperature
- -20°C to +60°C
- Power & environment
- 400W host power, 1000VA UPS, 4-fan cooling
- Audio/video
- Integrated camera, intercom (mic + speaker), 2 speakers
- Payment

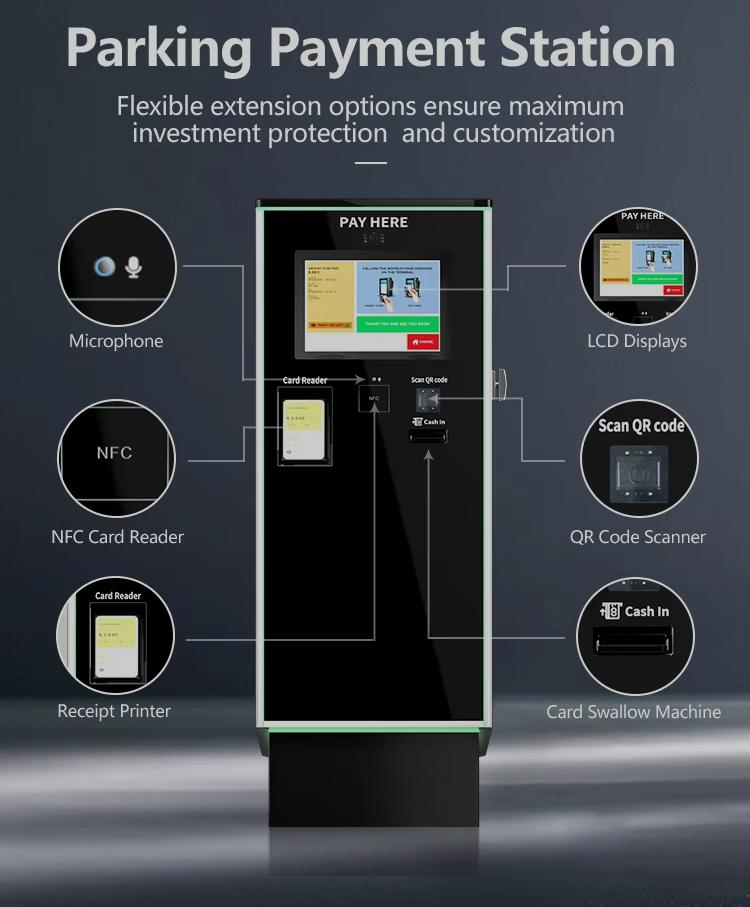

- NFC card reader, QR code scanner, ticket printer, POS for bank/credit cards, banknote acceptance and change
- Customisation
- Logo, appearance, colour, software; MOQ 5 sets for logo/packaging/graphics
