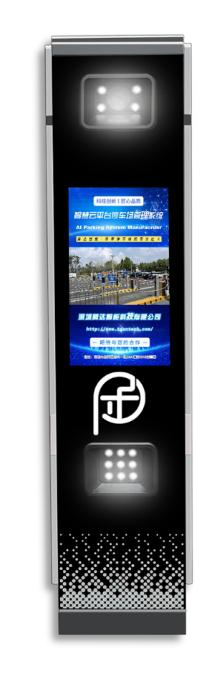

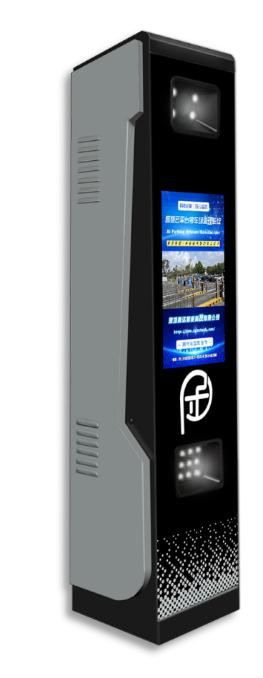

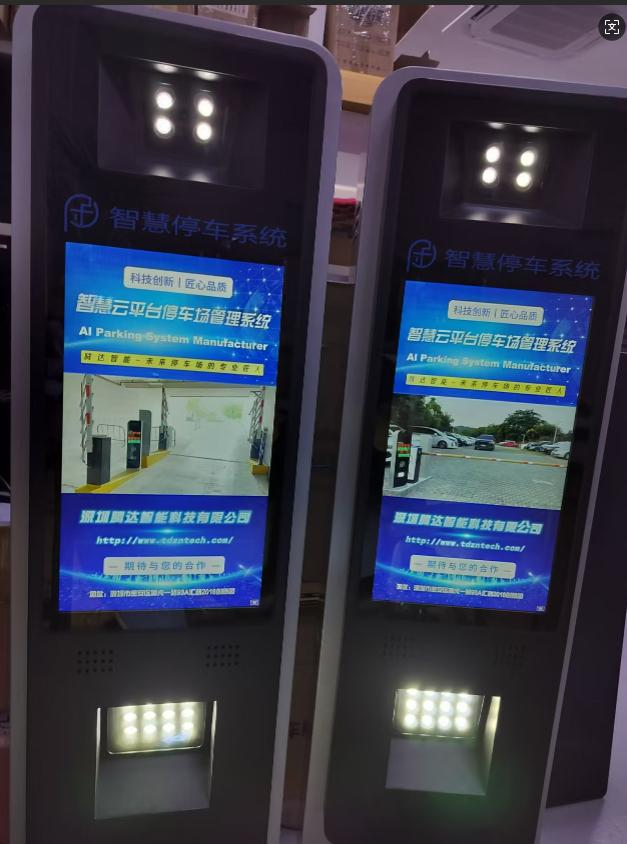

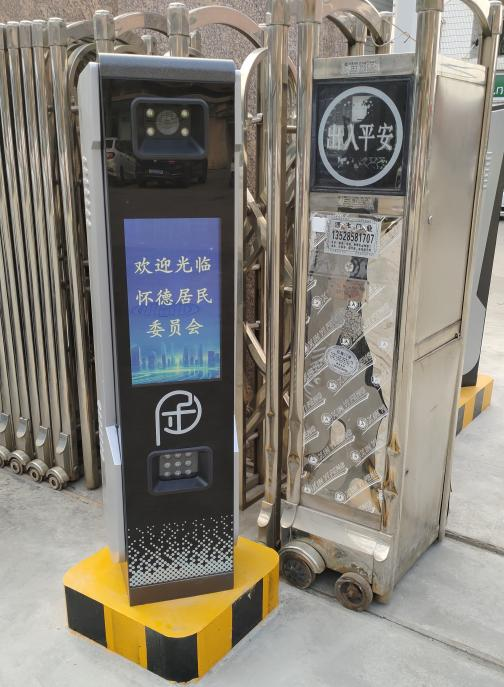

Tengda TD-GPA-XP801 License Plate Recognition Column
LPR cabinet with HD plate camera, LED display, power supply, speaker, circuit breaker and 15W fill light.
Description
An all-in-one licence plate recognition column. Per the quotation, the set includes the cabinet, a Tengda HD plate camera, display, power supply, speaker, circuit breaker and a 15 W fill light. It communicates via RS485 or TCP/IP and the 4-line LED display can show red, green and yellow text.
Included in the set
- Cabinet
- Camera
- Display
- Power supply
- Speaker
- Circuit breaker
- 15W fill light
Key facts
- Brand
- Tengda
- Model
- TD-GPA-XP801
- Condition
- New
- Lead time
- 15-30 working days after payment
- Warranty
- 2-year free warranty on all hardware (per Tengda catalogue p.2; not restated in the proforma - confirm in contract)
- Price basis
- EXW Shenzhen, China
Technical specifications
- Operating voltage
- AC100-240V (quote); AC220V (catalogue)
- Operating temperature
- -15°C to 85°C
- Camera
- 4 MP HD imaging, anti-counterfeiting (quote spec); "5 million" camera (quote description) / 5 MP (catalogue)
- Communication
- RS485 / TCP/IP
- LED display
- 4 lines of text; red, green, yellow; 4x4 Chinese characters
- Dot pitch (lattice diameter)
- Ø3.75 mm
- Fill light
- 15W
- Chassis dimensions
- 340 x 300 x 1400 mm
- Catalogue variant extras
- Display size 304 x 304 mm; 18.5-inch LCD 1000 nit, embedded Linux driver board
